Motorola Solutions R2 Portable Two-Way Radio No Keypad Digital VHF 136-174MHz

MOTOTRBO R2 Portable Digital VHF 136-174MHz two-way radio

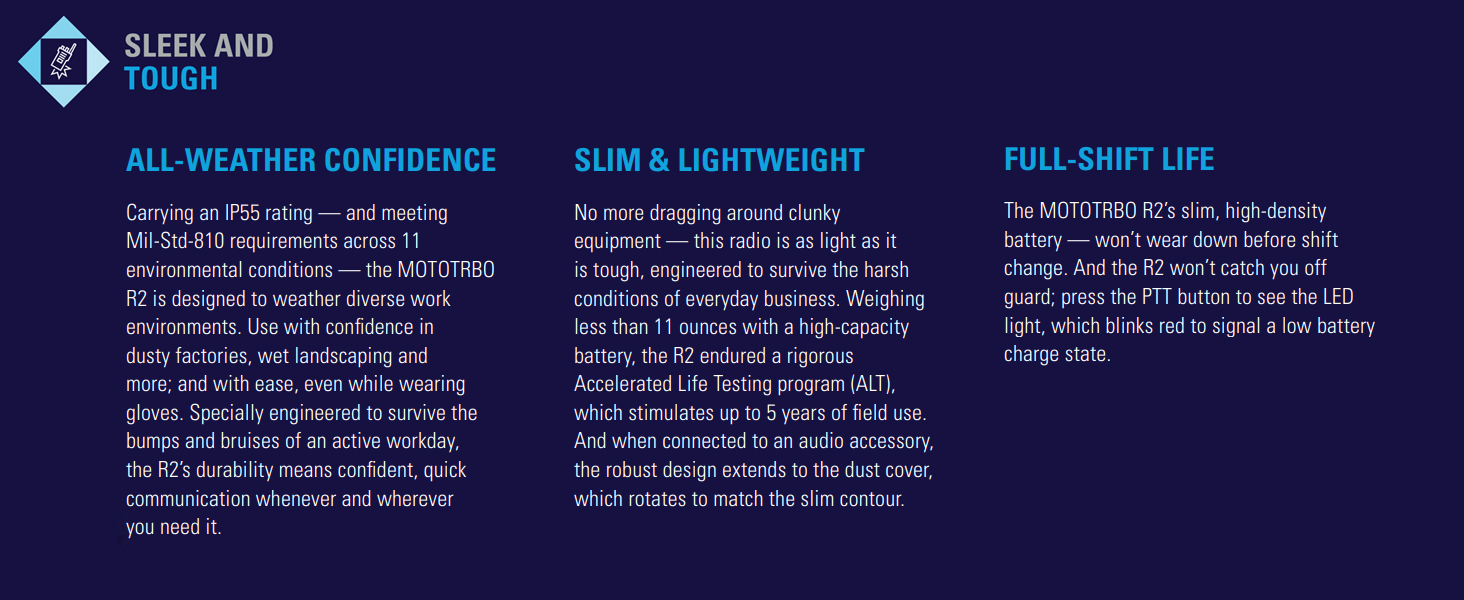

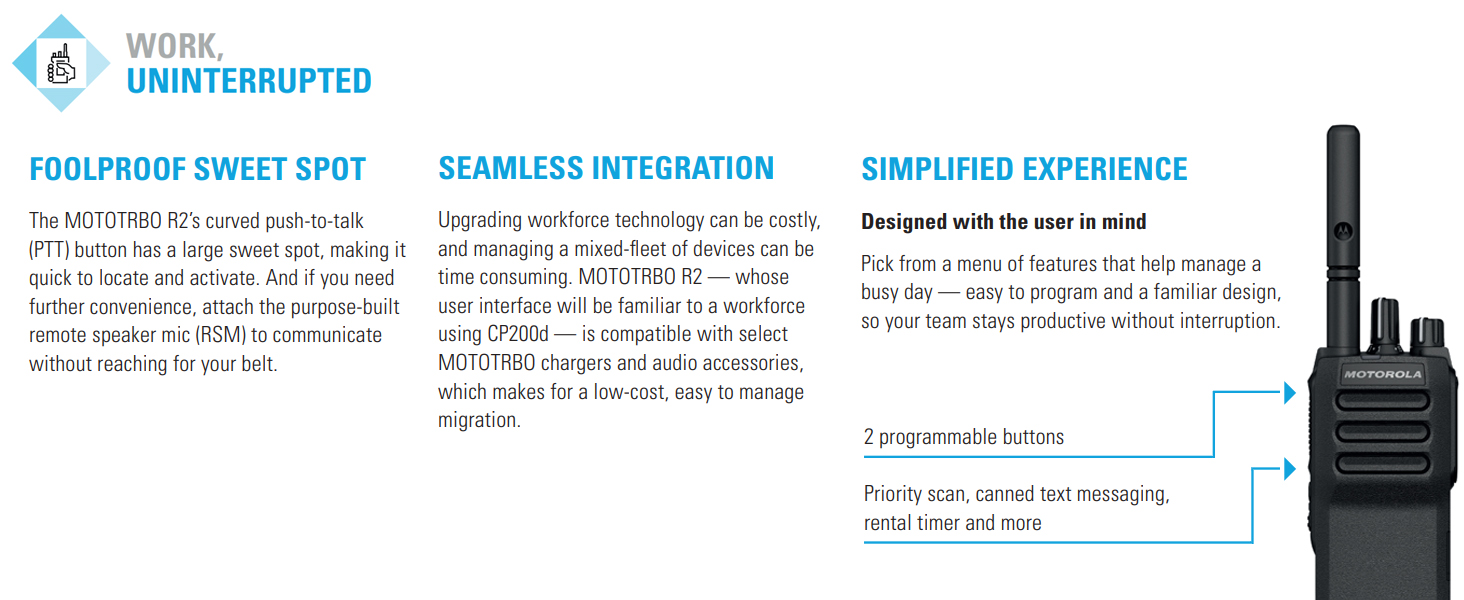

A next-level workhorse, the MOTOTRBOTM R2 marries durability and ergonomics to ensure confident, easy handling. And with superior range, configurable audio and seamless integration, the R2 is a reliable addition to an uninterrupted workday.

TECHNICAL SPECIFICATIONS

Frequency VHF 136-174 MHz Typical RF output High Power – 4W, Low Power – 1W / High Power – 5W, Low Power – 1W Channel Spacing 12.5 / 25.01 kHz1 Channel Capacity 64 Dimensions (with battery) 4.9 x 2.2 x 1.5 Weight (with battery) 10.1 oz Battery Life digital – 26.5hrs Power Supply 7.5V (nominal) FCC Description VHF AZ489FT3852 IC Description VHF 109U-89FT3852 Operating temperature -22 °F to 140 °F Storage temperature -40 °F to 185 °F Thermal shock / Humidity Per MIL-STD 810C, D, E, F, G, H Electrostatic discharge IEC 61000-4-2 Level 4 Dust and water intrusion IEC60529 IP55 Salt fog Per MIL-STD 810C/D/E/F/G/H

TRANSMITTER SPECIFICATIONS

4FSK digital modulation 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination: 7K60F1W Digital protocol ETSI TS 102 361-1, -2, -3 Spurious emissions (TIA603E) < -36 dBm for < 1 GHz ; < -30 dBm for > 1 GHz Adjacent channel power > 60 dB @ 12.5 kHz / > 70 dB @ 25 kHz Frequency stability ± 0.5 ppm

RECEIVER SPECIFICATIONS

Analog sensitivity 12dB SINAD 0.18 µV (typical) Digital sensitivity (5% BER) 0.16 µV (typical) Spurious emissions (TIA603E) < -57 dBm Intermodulation (TIA603E) > 70 dB Channel selectivity TIA603A-1T > 60 dB @ 12.5 kHz / > 70dB @ 25 kHz Channel selectivity TIA603A-2T > 55 dB @ 12.5 kHz / > 70dB @ 25 kHz Spurious rejection (TIA603E) > 70 dB Frequency stability ± 0.5 ppm

Package Dimensions ‏ : ‎ 12 x 9 x 3 inches; 3 Pounds
Item model number ‏ : ‎ AAH11JDC9JA2N
Date First Available ‏ : ‎ September 27, 2023
Manufacturer ‏ : ‎ Motorola Solutions
ASIN ‏ : ‎ B0CJZRT629
